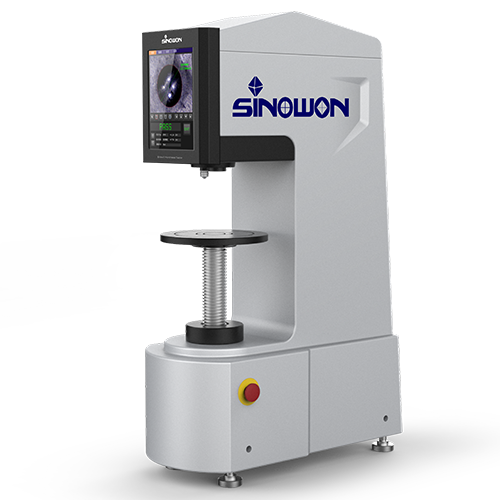

OP-AutoBrin AB-3000V (Full Auto Brinell Hardness Tester)
- Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.
- Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.
- OP-AutoBrin AB-3000V can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
- Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit
Description
Applications
- Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials.
- Wide application range, especially used in precision measurement of parallel plane.
- What’s more, measurement of curved surface is stable and reliable.
Technical Data
| Model | OP-AutoBrin AB-3000V | ||
| Test Force | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf | ||
| 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |||
| Measuring Range | (8-650) HBW | ||
| Hardness Resolution | 0.1HBW | ||
| Measurement | Automatically | ||
| Objective | 1x and 2x | ||
| Software | Win 10 OS, MS Office | ||
| Brinell Measurement Software BrinScan V3.0 | |||
| Max Height of Specimen | 260mm | ||
| Instrument Throat | 150mm | ||
| Power Supply | AC220V/110V±5%, 50~60Hz | ||
| Dimension | 622 x 313 x 992mm | ||
| Gross/Net Weight | 200Kg/170Kg | ||
| Execution Standard | EN-ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2, JJG150 | ||
| Accuracy of Brinell Hardness Testing | Hardness Range | Max Tolerance | Repetition |
| HBW ≤ 125 | ≤ ±3.5% | ≤ 3.5% | |
| 125 < HBW ≤225 | ≤ ±2.5% | ≤ 3.0% | |
| HBW > 225 | ≤ ±2.0% | ≤ 2.5% | |
