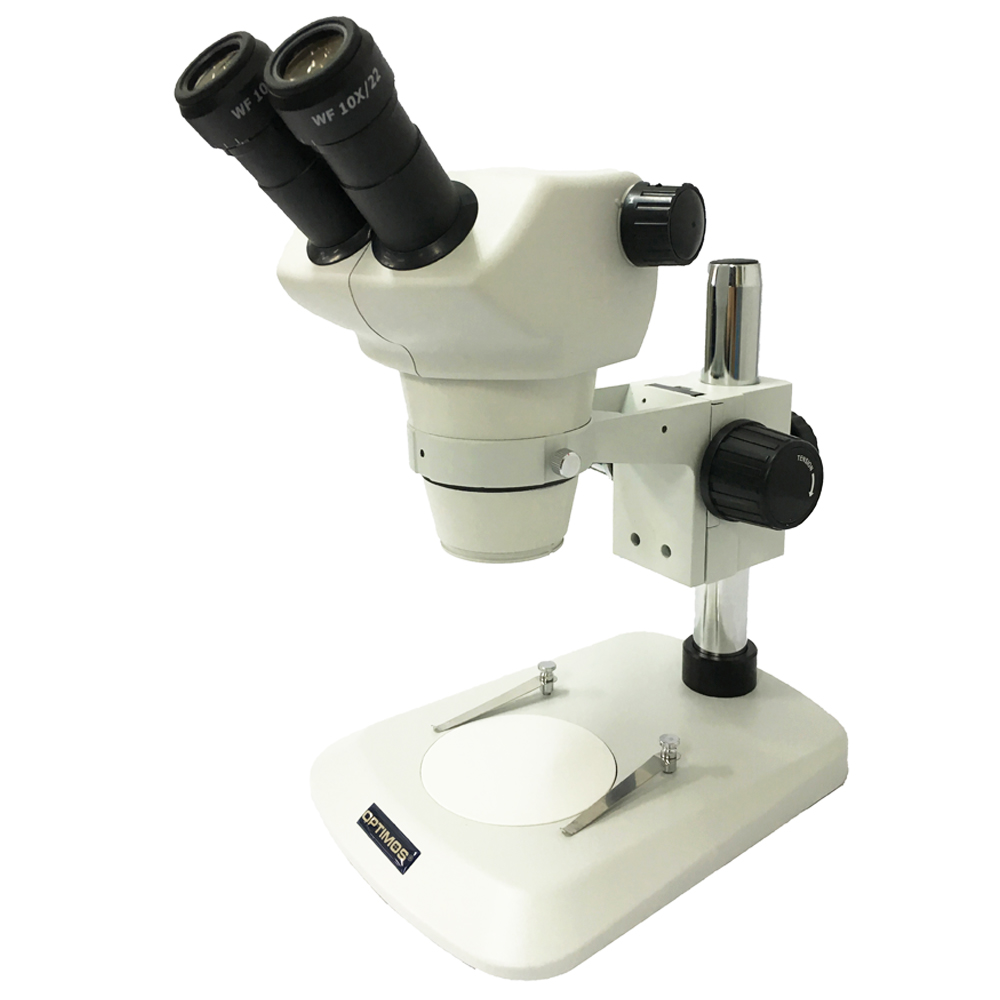

SZ-8050
SZ-8050 features good performance and high quality. It is ideal for schools, scientific research institutes and industrial field. It can generate a high definition 3D images with large depth of field. The horizontal dual zoom knobs with detents are more flexible and comfortable. ESD design can help release the continuous static electricity generated by the microscope and protect the specimens from damage. ESD microscope is optional and for special order.
Optics Parameter
High-eyepoint and wide field Eyepieces can be attached to SZ-8050 stereo Zoom Microscope, and the continuous magnification is from 0.8X-5X.
| Auxiliary lens | Eyepiece | Working distance (mm) |
|||||
| WF10X/22 ADJ *(INC) | WF15X/16 ADJ | WF20X/12.55 ADJ | |||||
| Total Magnification | FOV (mm) | Total Magnification | FOV (mm) | Total Magnification | FOV (mm) | ||
| 0.5X | 4X-25X | 55-8.8 | 6X-37.5X | 40-6.4 | 8X-50X | 31.2-5 | 220mm |
| 1X *(INC) | 8X-50X | 27.5-4.4 | 12X-75X | 20-3.2 | 16X-100X | 15.6-2.5 | 115mm |
| 2X | 16X-100X | 13.8-2.2 | 24X-50X | 10-1.6 | 32X-200X | 7.8-1.3 | 45mm |
*Included (INC)
Different Types of Stands
OP-8050 with CRT Monitor, 1/3” Color CCD Camera, bonder Arm, long arm heavy base, LED ring illuminator
High eyepoint and wide field 10X eyepieces can be attached to OP-8050, and the continuous magnification is from 8X-50X. The adjustable binocular vision can help the operator to get a clear and satisfactory image. Different eyepieces and objectives are optional for observation.
Different Types of Stands
- With Pneumatic arm, Fiber optic Illuminator
- With Dual Arm Boom Stand, Bonder Arm
